- Combines the benefits of a low-friction Turcon® slipper seal with the high sealing characteristics of an elastomer seal
- High sealing effect in applications requiring media separation, fluid/fluid or fluid/gas
- Low gas permeation rate
- Double security through the combination of low-friction special materials with elastomer seals
- Simple groove design, small installation space, interchangeable with Turcon® Glyd Ring®, Turcon® Glyd Ring® T and Turcon® Stepseal® 2K
- Capable of operating successfully at higher pressures and sliding speeds
- Outstanding sliding properties, no stick-slip effect

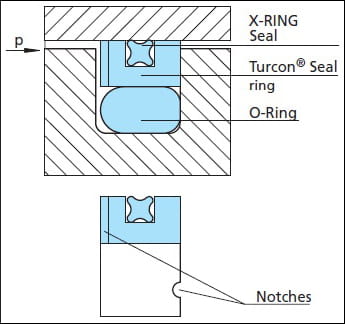

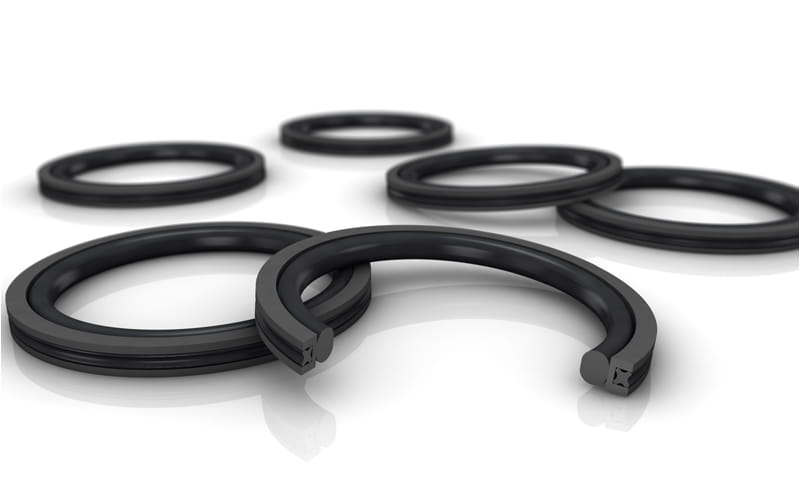

The Turcon® AQ-Seal® is a double-acting seal consisting of a seal ring of high-grade Turcon® material, an X-Ring and an O-Ring as energizing elements. The Turcon® seal ring together with the X-Ring perform the dynamic sealing function, while the O-Ring performs a static sealing function.
The AQ-Seal® is supplied as standard with radial notches on both sides. These ensure direct pressurizing of the seal under all operating conditions.
Typical Oil & Gas Applications Include:
- Drilling and steerable tools
- Subsea Trees: Gate / choke valves, actuators and control modules
- Connector seals
- Risers and compensators
- Downhole and intervention tools
- Flow Control Equipment; Ball Valves and associated devices
- Gas lifts
- Offshore topside hydraulics
- Subsea connectors
- Hot stab connectors
- Piston accumulators
- Heavy duty tensioner cylinders
| Parameters | Values |
|---|---|
|
Operating Pressure |
Up to 7,251 psi / 50 MPa with mineral oil and gases. Higher pressures can be achieved by using corner reinforcements. |
|
Speed |
Up to 6.6 ft/s / 2.0 m/s with reciprocating movements |
|
Frequency |
Up to 5 Hz |
|
Temperature Range |
-45 °C to +260 °C / |
|
Media |
Hydraulic fluids, mineral oil, synthetic and natural esters, gas |
